    A-1. Outline of Pig lining

    1.Minimum lining temperature Over 1℃
    2.Film thickness Based on one time lining, 800μmfor straight pipeline, 400㎛ for Bend, maximum thickness 3mm.
    3.Distance Possible over than 1km
    4.Ability Possible for lining regardless of quantity and sort of horizontal / vertical pipeline.
    5.Durability 17years based on the film thickness of 800㎛
    6.Maximum bore size 30inch

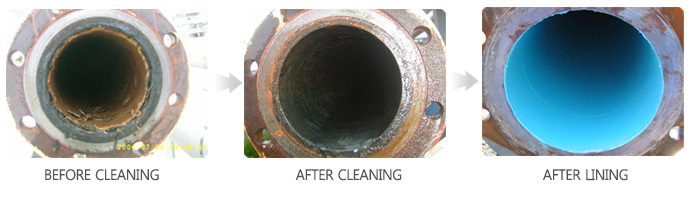

    LINING

    A-2. Method of Pig lining

    * Preparation

  • 1. Check the work site: Review the target pipeline as per the result of Pre-Engineering with drawing. (In case of discrepancy between actual site condition and drawing, discuss with the client)
  • 2. Pig Launcher (tubes) and Receiver (arrival hall) to launch Pig is part and installed at arrival part.
  • * Pig Descaling

  • 1. 1 step pig: KIS-NCW(Foam pig) Penetration test
  • 2. 2 step pig: Removing and Scraping foreign debris inside wall of pipeline
  • 3. 3 step pig: Removing moisture and fine dust
